Our Little IoT Gem

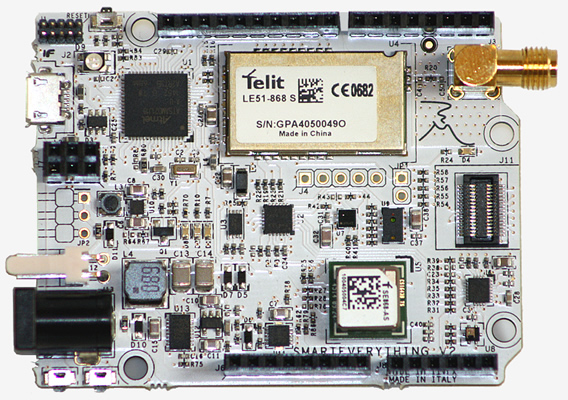

SmartEverything is the core component developed to accelerate the “Internet of Things” eco- system. It is an Arduino form factor IoT board, equipped with a multitude of factory bundled I/O ports and sensors and with the most energy-efficient wireless connectivity technology dedicated to all projects in the IoT and IoE fields.

SmartEverything User Guide v. 1.0

SmartEverything, the most complete and low power, ever.

  • Infinity
    Arduino Compatibility
    Arduino form factor, fully supported by Arduino IDE
  • Malware
    SWD Connector
    To program and debug the board with SAM-ICE or ATMEL-ICE
  • USB
    USB Connector
    To power and interface the board and to program the D21 with Arduino IDE
    32-bit ARM® Ultra low-power ARM® Cortex®-M0+
  • WiFi
    Sigfox Module
    Telit LE51-868 S 868MHz module (902.3MHz US versione available soon)
  • CryptoAuthentication Chip (ATMEL ATSHA204A)
    Atmel ATSHA204A, for exchanging and storing data securely
  • Blutooth
    Bluetooth Low Energy (optional)
    TDK SESUB-PAN-T2541 Module, based on TI CC2541
  • GPS/GNSS with Embedded Antenna
    Telit Jupiter SE868-A fully support GPS, QZSS, GLONASS and it is Galileo ready.
  • NFC NTAG with Antenna
    NXP NT3H1101FHK to share data between SAM D21 and your smartphone

SmartEverything, your full-embedded sensors center.

  • MEMS Pressure Sensor
    ST LPS25H is a 260-1260 hPa absolute barometer and altimeter
  • Proximity and Ambient Light Sensor
    ST VL6180X is a Proximity and Ambient Light Sensor and a VCSEL light source
  • iNEMO 9-Axis inertial Module
    ST LSM9DS1 is a 3D accelerometer, 3D gyroscope and 3D magnetometer
  • Humidity and Temperature Sensor
    ST HTS221 is a capacitive digital sensor for relative humidity and temperature

Main Applications


Use the SmartEverything Board to quickly prototype your IoT device. A wide choice of
components is available for this purpose. If, for your prototype, you need yet another
different component for your application, you can connect it to the digital and analog I/Os available on the board headers.

IoT Application

Makers and Developers

A CPU board and many shields in one board.
With SmartEverything Fox you can make a wide range of projects and applications come true, the only limit is your imagination!

Private App Grey


A jewel of advanced technology, the board features a simplified (Arduino IDE)
but also a professional (Atmel Studio) programming environment, making the SmartEverything
an ideal educational tool and, at the same time, the perfect tool to develop projects in technical and scientific labs.

Prototype App Grey
